Deep Rock 10K
Capabilities
  • Hollow Stem Auger Drilling
  • Solid Stem Auger Drilling
  • Angle Hole Auger Drilling
  • Rupe Wire Line Sampling
  • In Hole Sample Hammer
  • Laskey Continuous Sampler with 5 Foot Barrel
  • Operational with only 12 Feet of Overhead Clearance while Traveling
  • 27 Foor Derrick Extension
Specifications
  • 10,000 ft-lb Torque
  • 20,000 lbs. Pull Back
  • 12,000 Ibs. Pull Down
  • Two-Speed, Hydraulic Top Drive 0-80, 0-160 RPM
  • Diesel Powered, All Hydraulic Operation
  • Width, 8 Feet; Height, 9 Feet; Length, 24 Feet
  • 3 Winches, Line Pulls to 10,000 Ibs.
  • Deck and Mast Slides to Accommodate Angle Hole Drilling

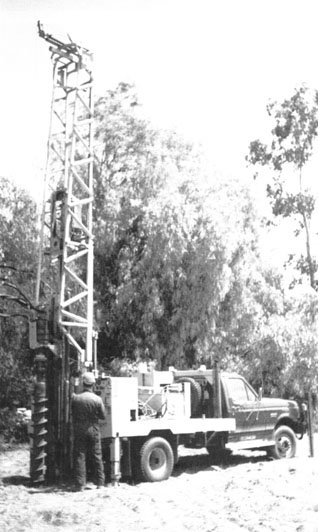

Great West Drilling's DR 10K is ideal for a wide range of auger drilling projects. It has the power and torque of a large rig in a small package. The DR 10K will pass through a 9 foot overhead door opening, is operational with a minimum 12 feet of overhead clearance, and is powerful enough to operate up to 10 1/4 inch I.D. augers.
<<<<<<<<
>>>>>>>>
